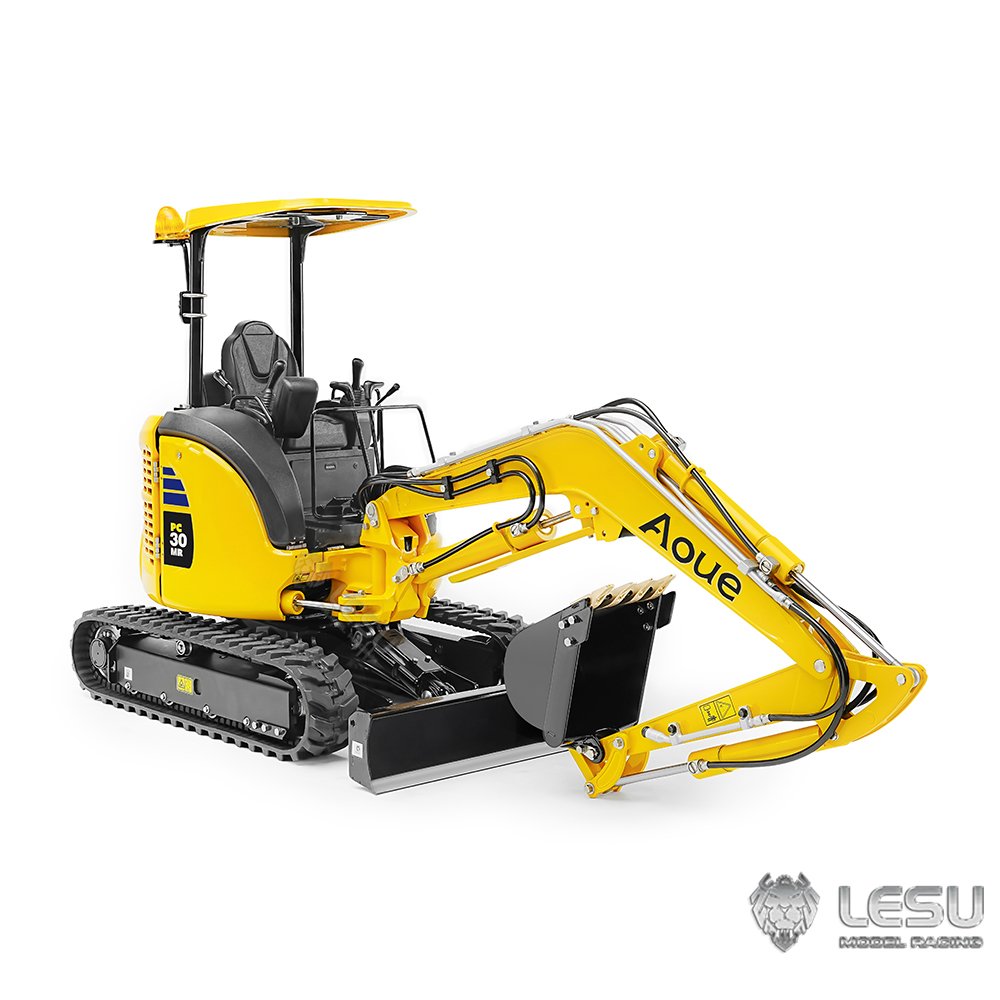

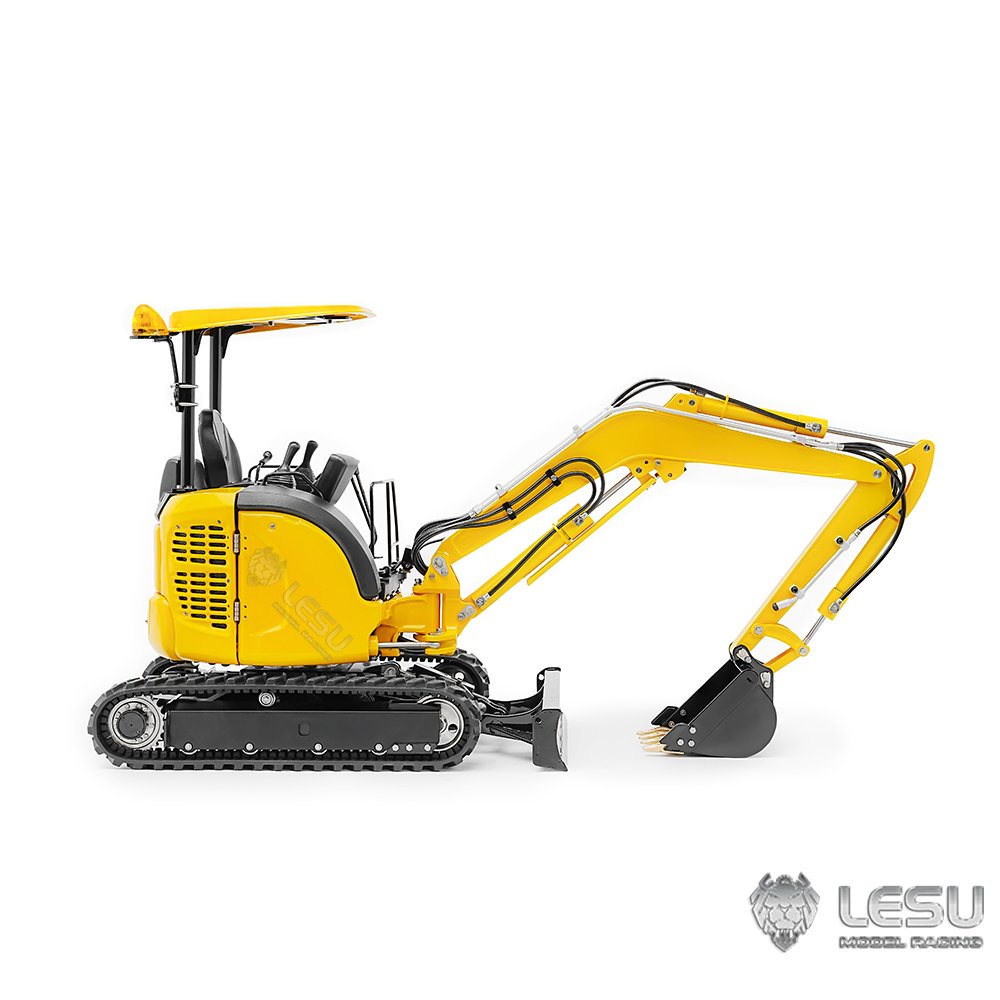

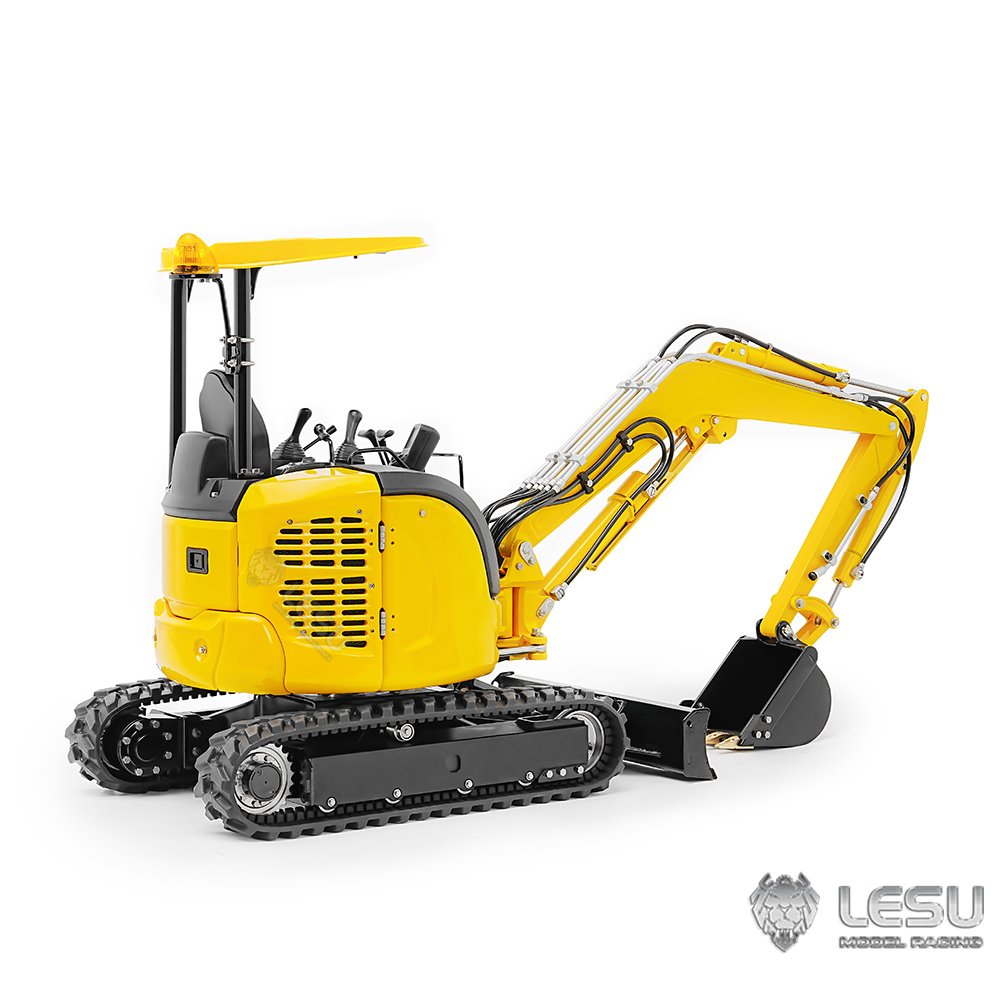

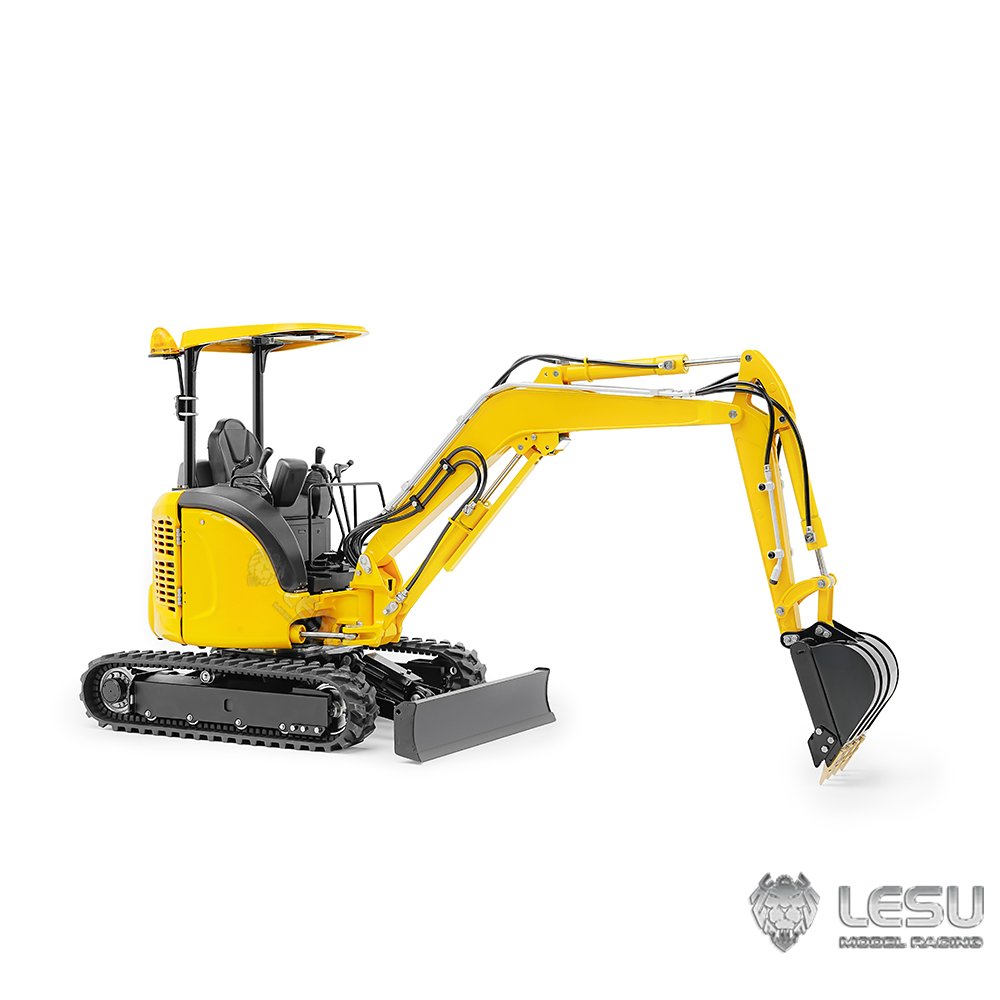

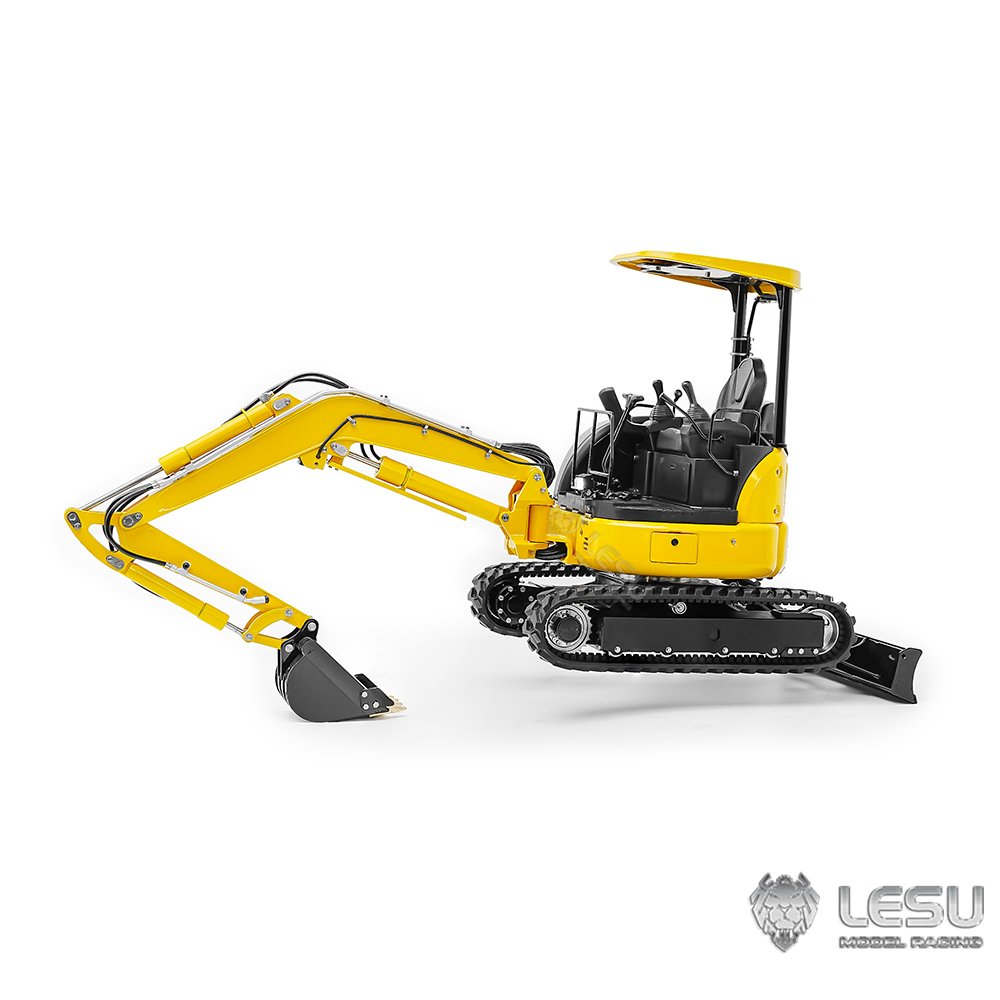

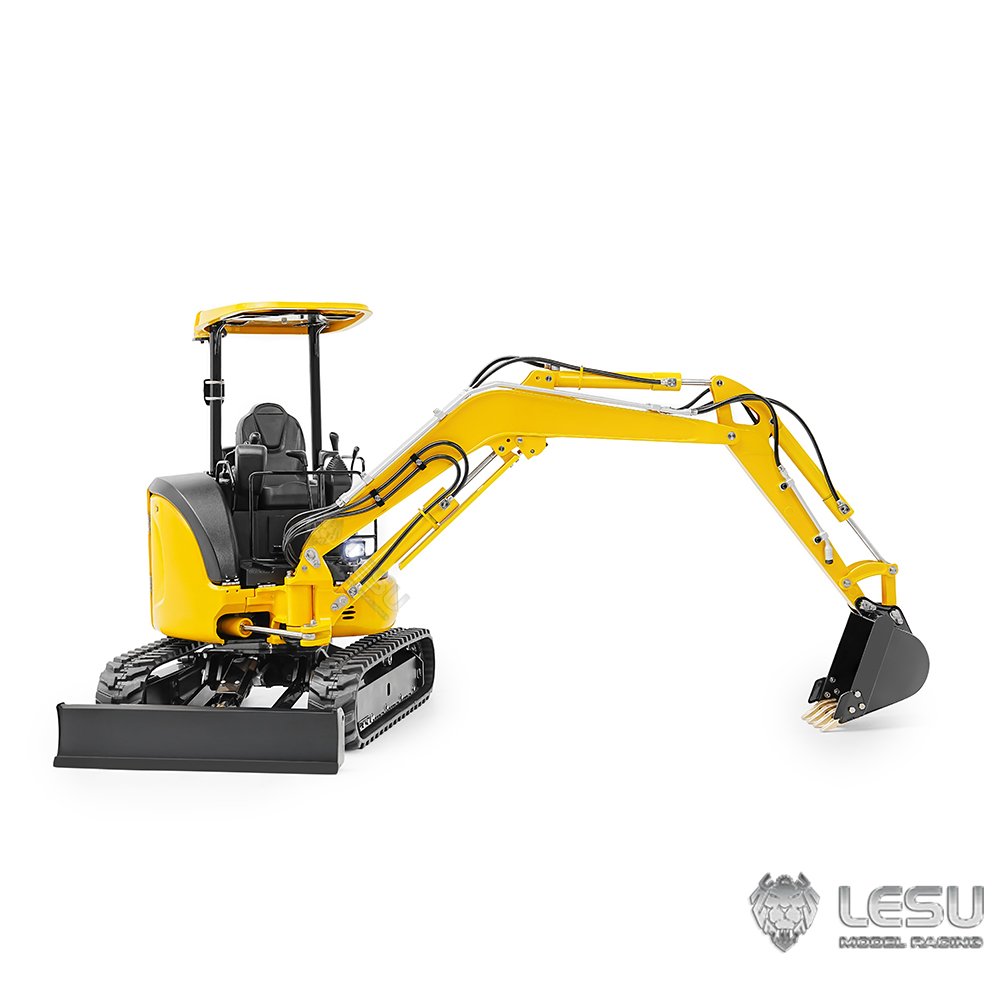

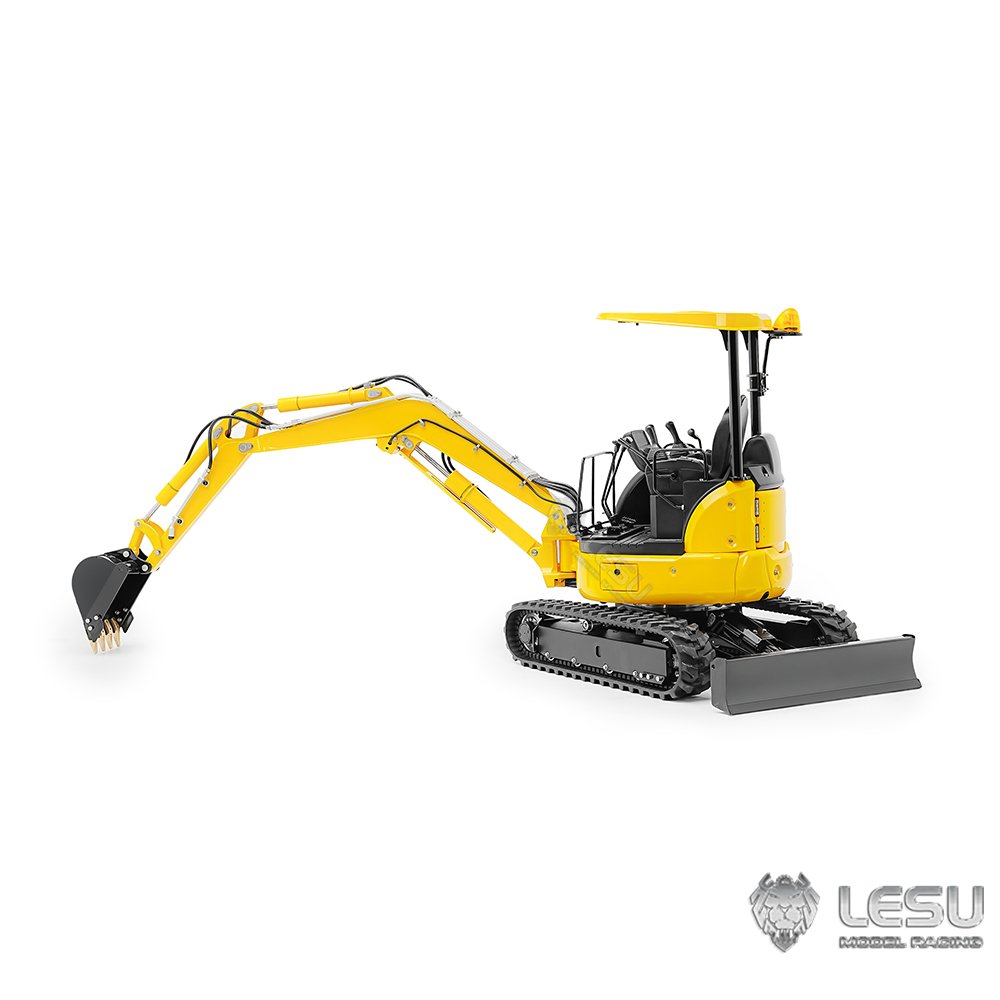

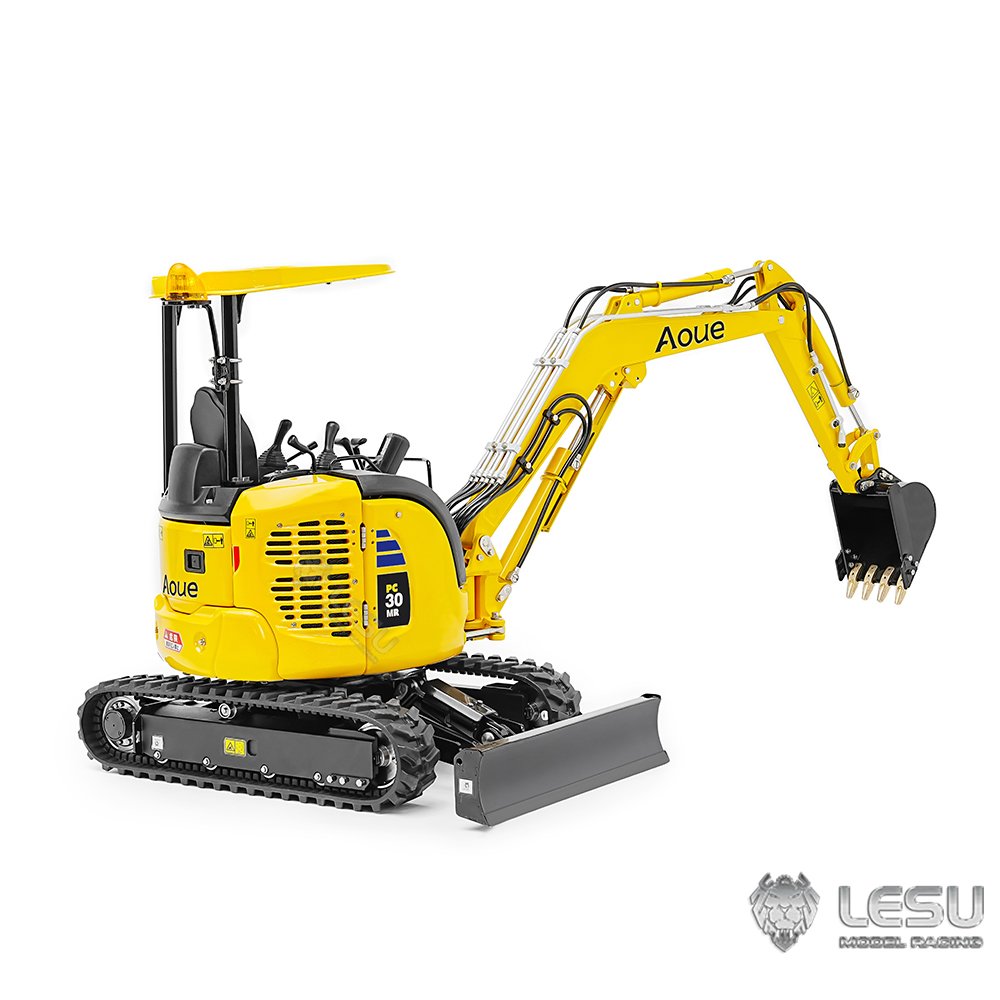

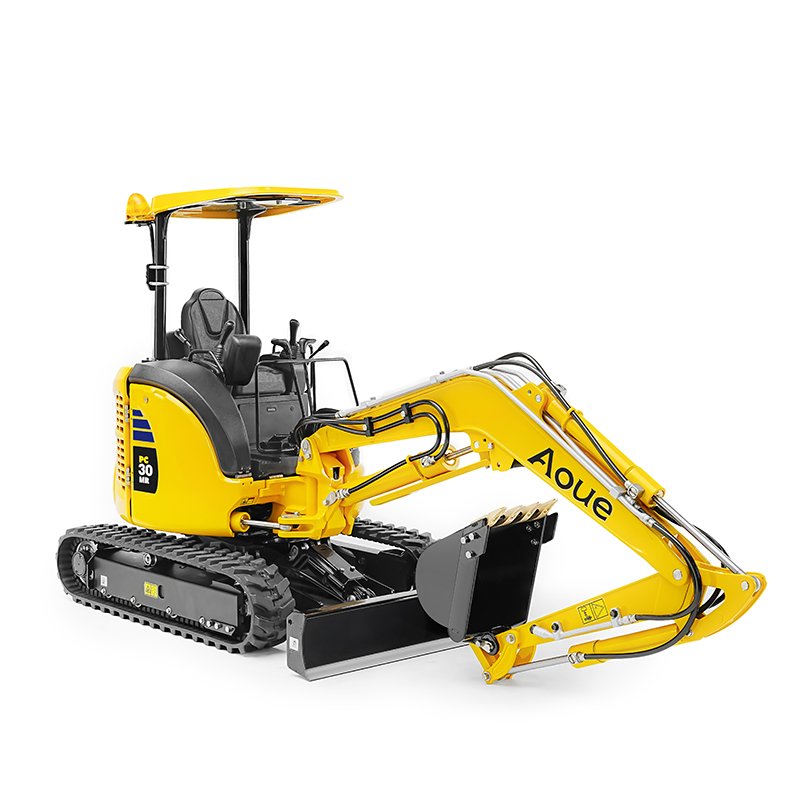

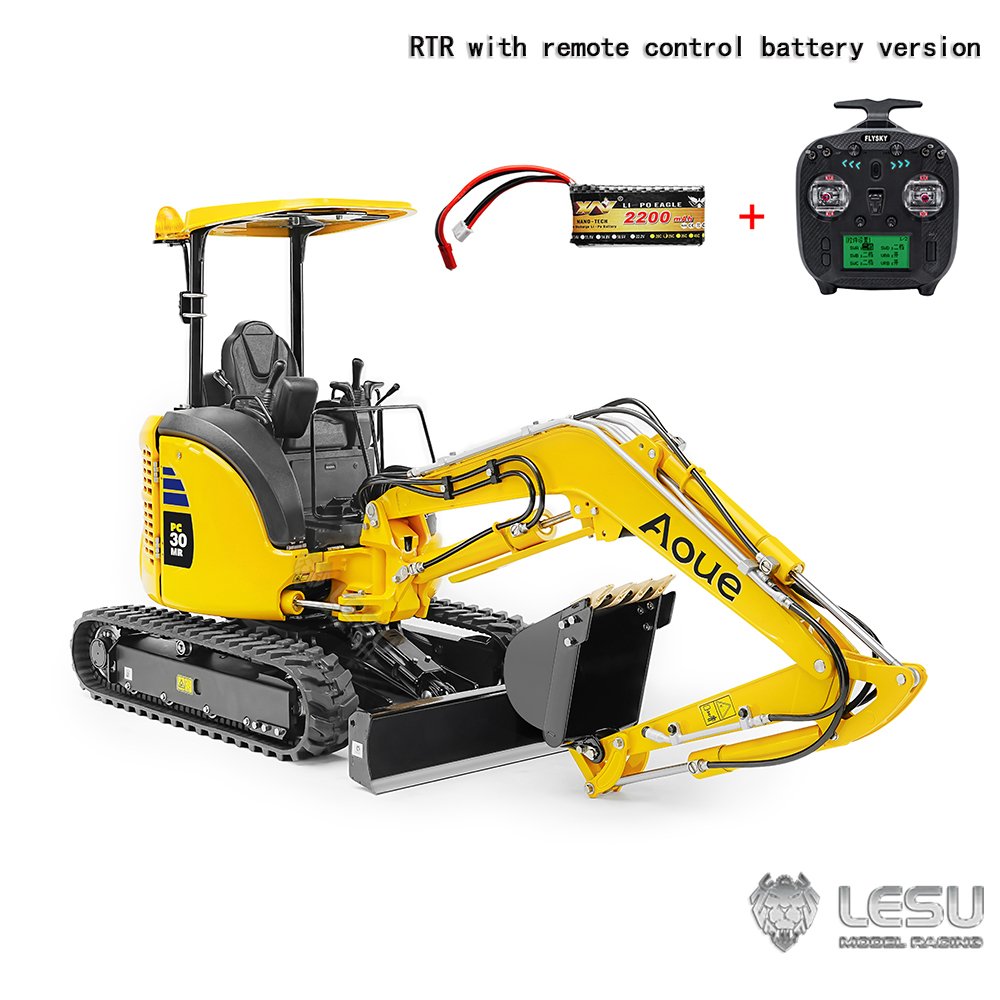

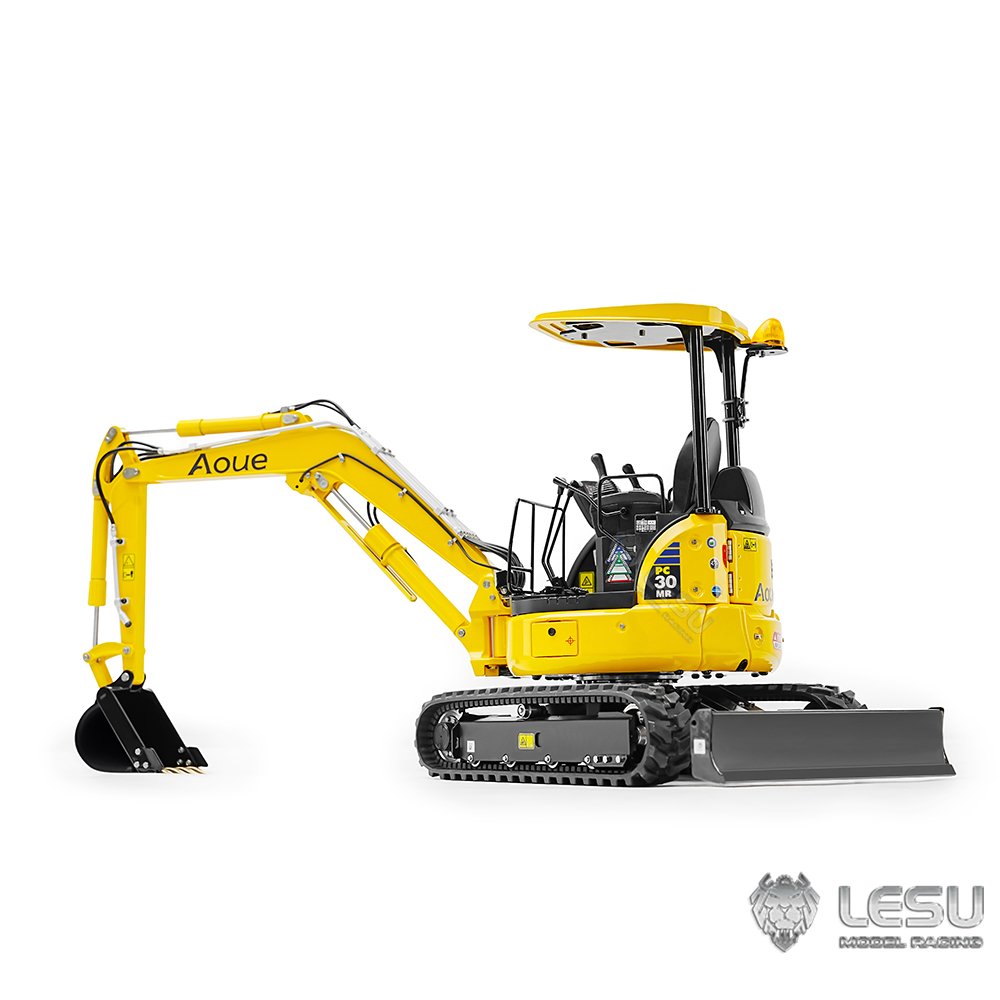

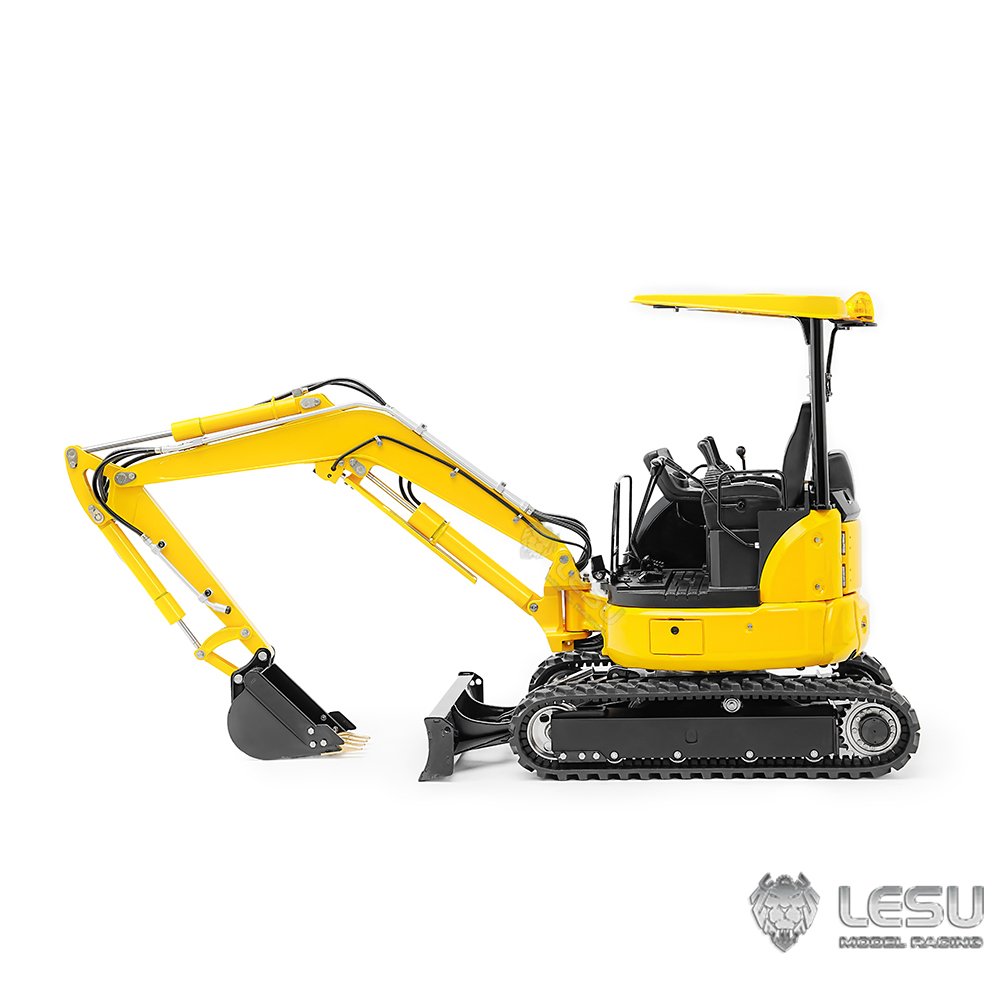

PC30 RTR

产品功能全描述 中/英 翻译

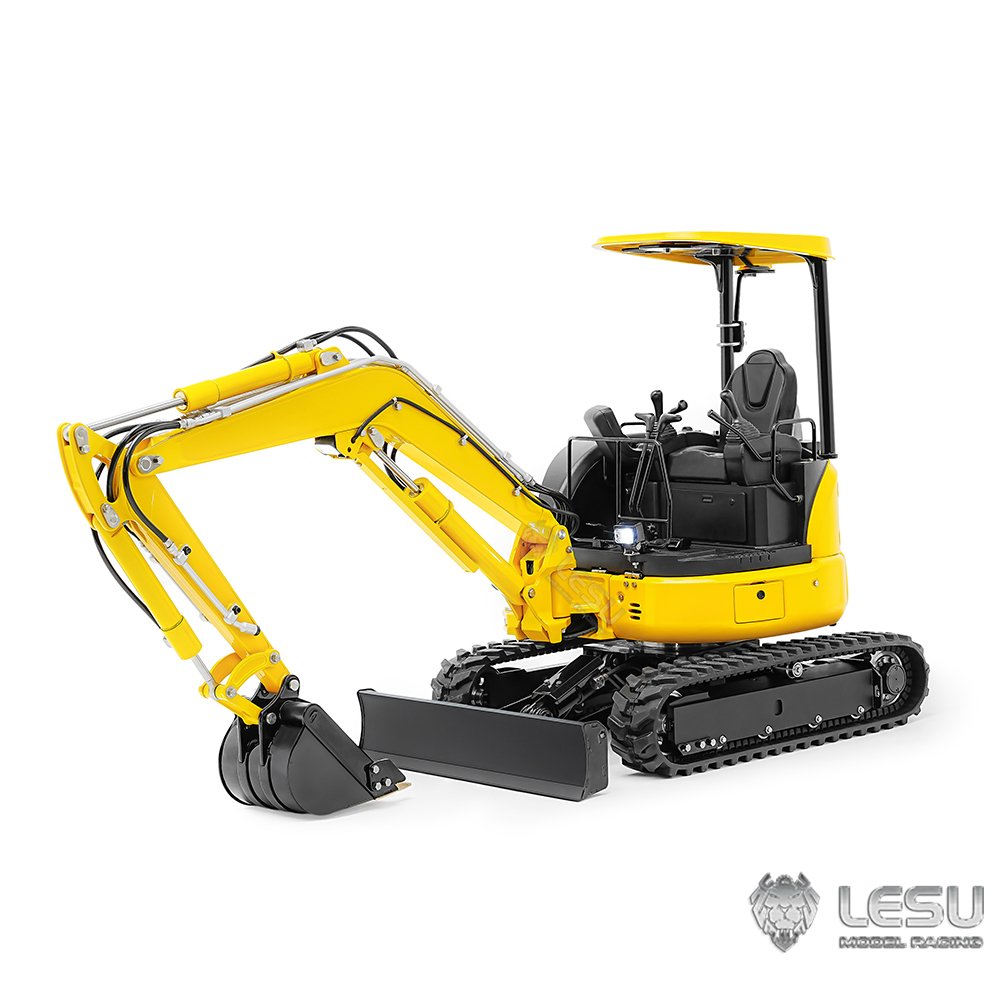

1.全车搭配2个LED灯光，1个警示灯。
1.The vehicle is equipped with 2 LED lights and 1 warning light.

2.仿真液压动臂摆臂角度，作业范围更灵活。
2.Simulate the swing angle of the hydraulic boom, making the working range more flexible.

3.固定油路系统80%全铜焊接，整机90%的金属材质。
3.80% of the fixed oil circuit system is fully copper welded, and 90% of the whole machine is made of metal.

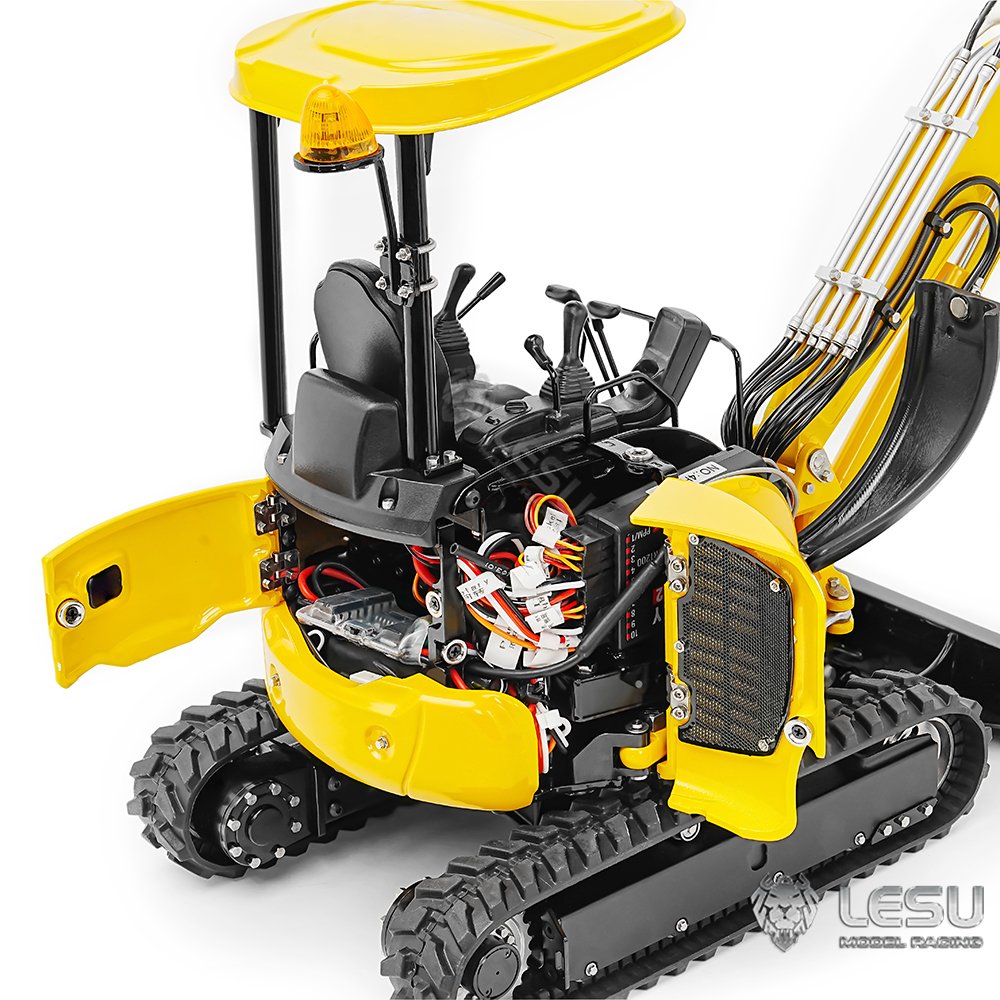

4.液压工作站油路采用一体化设计，减少油管的使用。
4.The oil circuit of the hydraulic workstation adopts an integrated design to reduce the use of oil pipes.

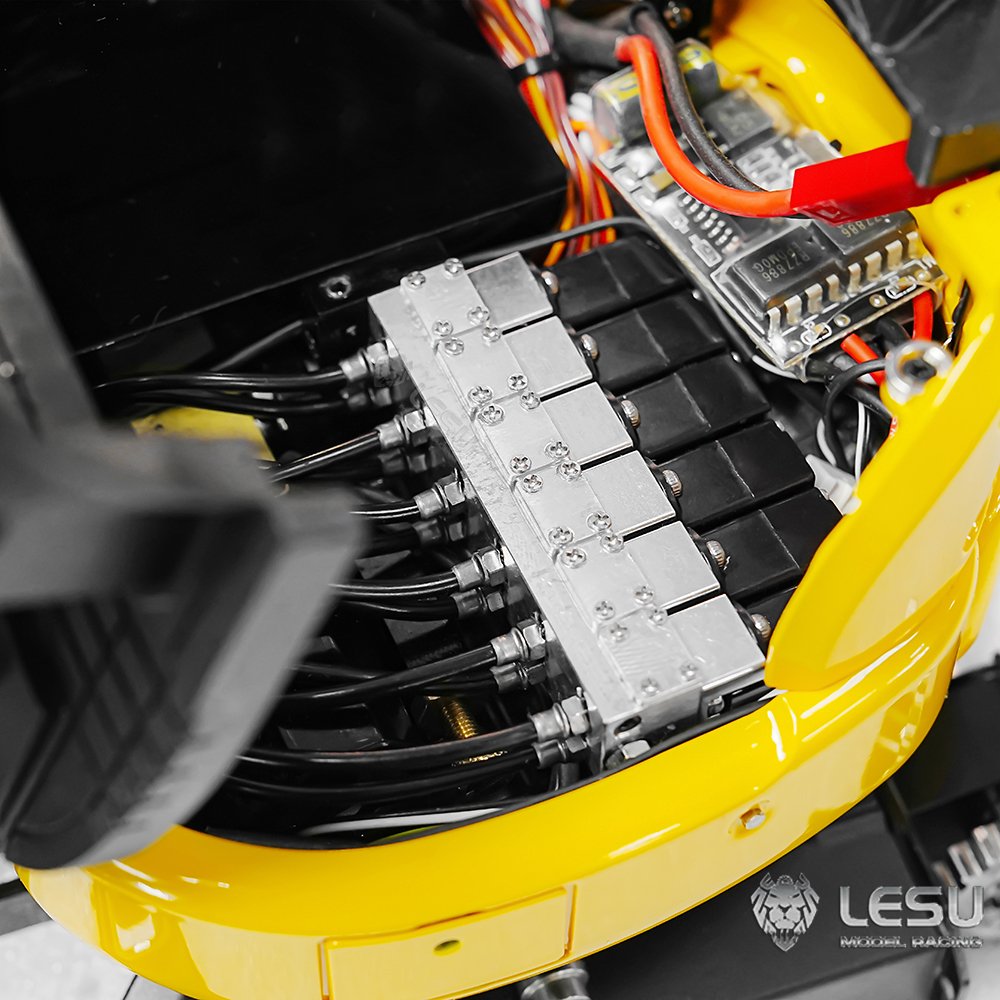

5.配备6通道换向阀，5组液压缸，且动臂预留1路油路扩展功能。
5.It is equipped with 6-channel reversing valves, 5 sets of hydraulic cylinders, and 1 oil path is reserved for the boom to expand the function.

6.使用全新设计的内啮合齿轮液压泵，具有体积小、效率高、静音的特点。
6.A newly designed internal gear hydraulic pump is used, featuring compact size, high efficiency, and quiet operation.

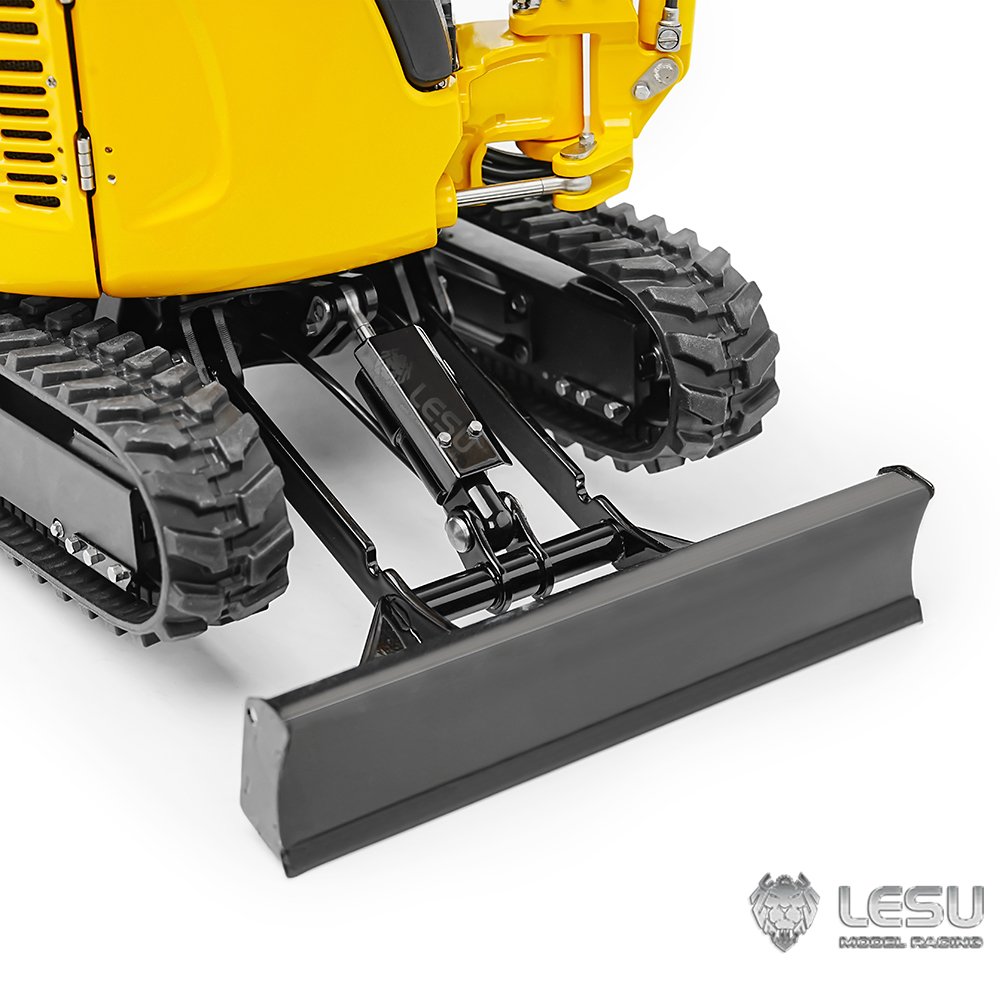

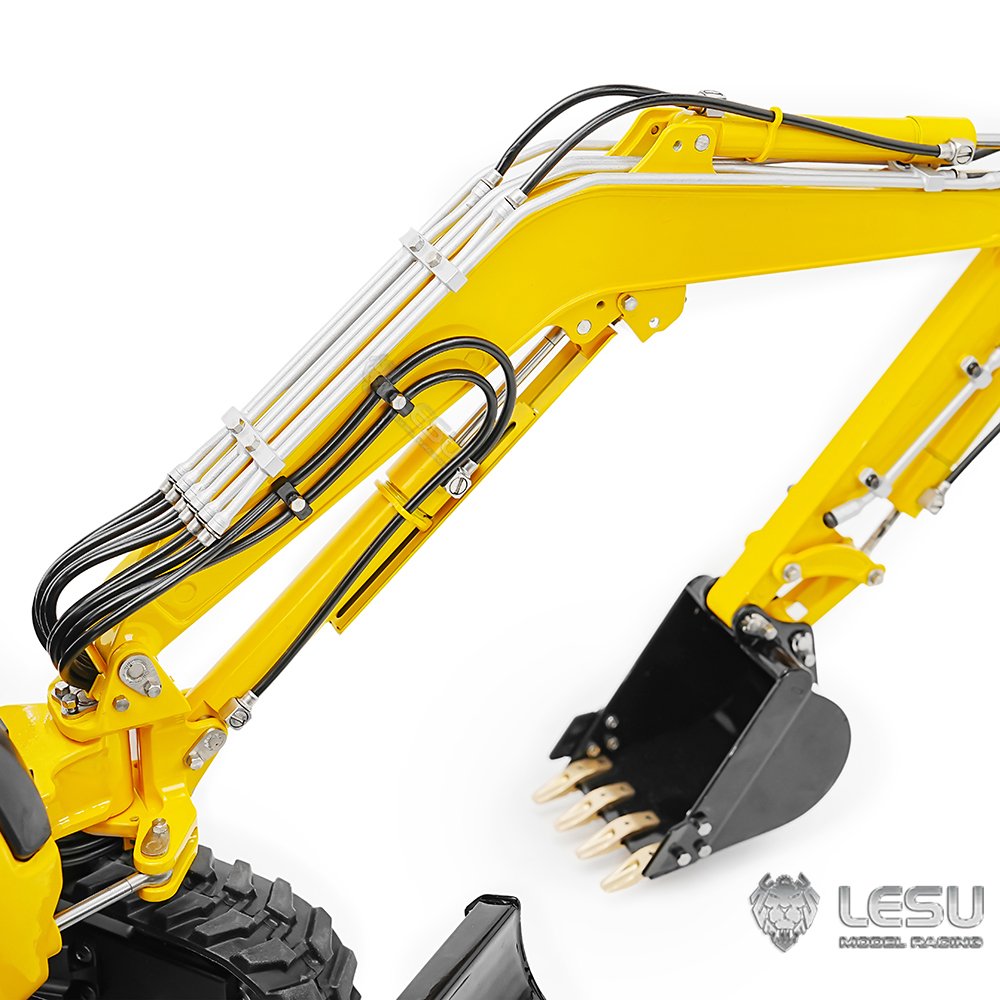

7.精密液压系统，液压挖臂，液压摆臂，液压推土铲，动作更协调、流畅、线性。
7.Precision hydraulic system, hydraulic digging arm, hydraulic swing arm and hydraulic dozer blade make the movements more coordinated, smooth and linear.

8.该机型首次使用柱塞式换向阀，具有体积小，流体速度快，动作过程舵机负荷小等特点。
8.This model uses a plunger-type reversing valve for the first time, offering compact size, high fluid speed, and low servo load during operation.

9.配备大扭力无刷电机回转驱动，且增加电流过载保护系统，可有效保护电路，防止电机超负荷运行。
9.Equipped with a high-torque brushless motor rotary drive and a current overload protection system, which can effectively protect the circuit and prevent the motor from overload operation.

10.回转系统采用仿真回转支撑转盘，集1路油滑环、4路电滑环于一体可360°无限旋转，且具有高精度、高密封性，有效避免泄漏等优点。
10.The slewing system uses a simulated slewing support turntable, which integrates 1-way oil slip ring and 4-way electric slip ring and can rotate 360° infinitely. It has the advantages of high precision, high sealing, and effectively avoids leakage.

技术参数 中/英 翻译

轨距/mm 100
Track gauge/mm

回转速度(r/mim) 11
Rotation speed

动臂摆动角度 L78°/R59°
Boom swing angle

铲斗偏移 L46.5/R61.5
bucket offset

履带宽度/mm 22
Track width/mm

履带总长/mm 168
Total track length/mm

液压泵数量 1
Hydraulic pump quantity

最大挖掘深度 209.5
Maximum digging depth/mm

最大挖掘半径/mm 416.2
Maximum digging radius/mm

最大挖掘高度/mm 397.4
Maximum digging height/mm

行走电机转速（r/min）15000
Travel motor speed (r/min)

最大卸载高度/mm 277.4
Maximum unloading height/mm

回转驱动减速比 603
Rotary drive reduction ratio

回转电机转速（r/min）31800,7.4V
Rotating motor speed (r/min)

行走驱动减速比 256
Travel drive reduction ratio

最小回转半径/mm 74.2
Minimum radius of gyration/mm

挖掘机总宽度/mm 127.6
Overall width of excavator/mm

行走驱动轮速度(r/mim) 58
Travel drive wheel speed (r/mim)

驾驶室顶部离地高度/mm 203.2
Cab top height from the ground/mm

推土铲最大切入深度/mm 27.4
Maximum depth of cut for dozers/mm

换向阀通数 6
Number of passages of reversing valve

地面最大挖掘半径/mm 405.6
Maximum digging radius on the ground/mm

X架底部离地高度/mm 19.1
X frame bottom height from the ground/mm

推土铲最大提升高度/mm 30.6
Maximum lifting height of dozer blade/mm

液压工作站额定压力/mpa 1.5
Hydraulic workstation rated pressure/1.5mpa

液压工作站最大压力/mpa 2
Maximum pressure of hydraulic workstation/2mpa

工作平台底部离地高度/mm 45
Ground clearance of the bottom of the work platform/mm

轴距(驱动轮引导轮中心距)/mm 130
Wheelbase (center distance of drive wheel and guide wheel)/mm
